| Brand Name: | Beishun |
| Model Number: | SF-800 |
| MOQ: | 1set |
| Price: | USD 2500-6000 Set |
| Packaging Details: | Standard Wooden Case |
| Payment Terms: | TT，L/C |

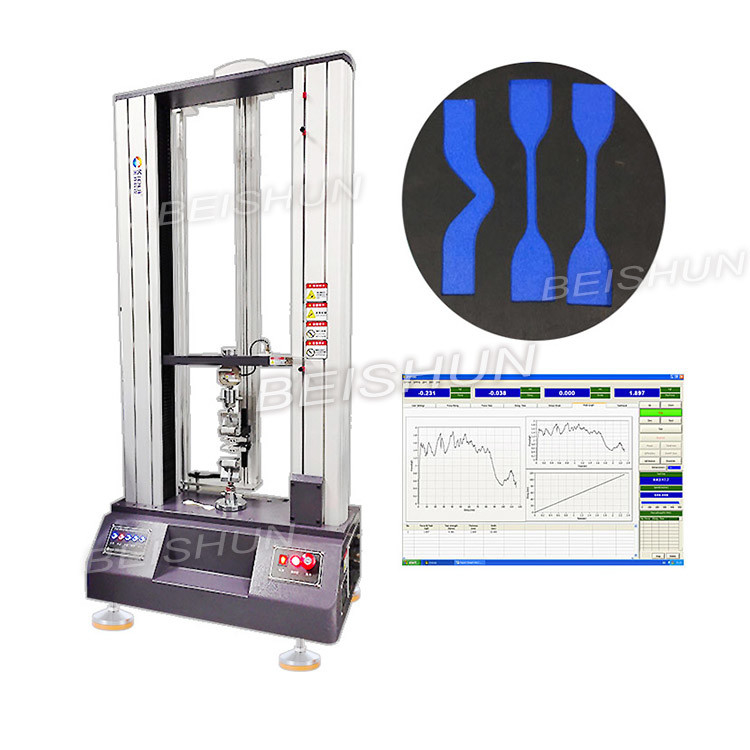

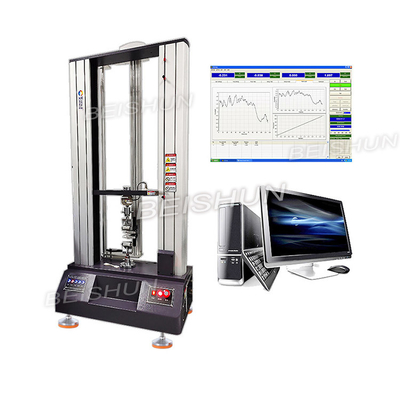

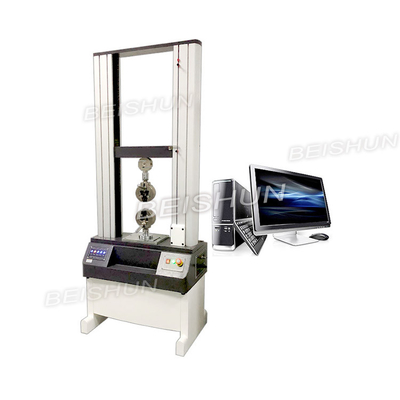

Laboratory Computer Controlled Electronic Material Tensile Universal Testing Equipment
Application:
Laboratory Computer Controlled Electronic Material Tensile Universal Testing Equipment is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Parameter
| Items | Laboratory tensile testing machine |
| Max. Capacity | 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 3000Kg |
| Unit | G, KG, N, LB can be exchanged |
| Accurate Grade | 0.5 grade / 1 grade |
| Display Device | PC controlled |
| Resolution | 1/300,000 |
| Effective Accuracy | ±0.2%(0.5grade) or ±1%(1grade) |
| Max.width | 400mm,500mm(or customize) |
| Max.Stroke | 800mm, 1300mm(optional) |
| Speed Range | 0.05-500mm/min (adjustable ) |
| Motor | Servo Motor + High Precise Ball Screw |
| Elongation Accuracy | 0.001mm(rubber or soft plastic)/0.000001mm(metal or hard plastic or others) |
| Power | AC220V, 50/60HZ(custom-made) |
| Machine size | 800*500*2200mm |
| Standard Accessories |
Tensile clamp, Tool kit, Computer system, English software CD, User manual |
Product features:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Equipment summary:
Laboratory Machine Material Tensile Universal Testing Equipment is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.
|
|
