| Brand Name: | Beishun |
| Model Number: | XY -4Г1500 |
| MOQ: | 1set |
| Price: | USD 5000-500000 Set |
| Payment Terms: | TT，L/C |

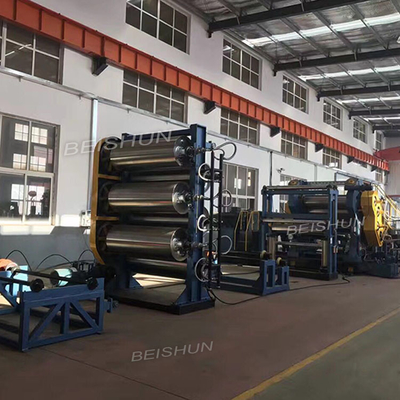

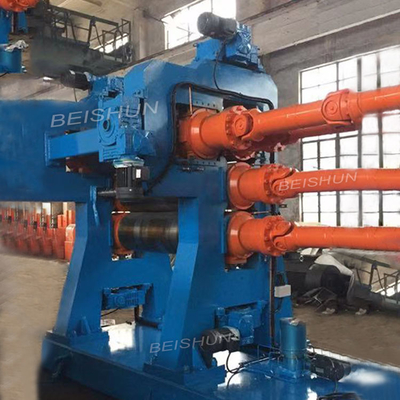

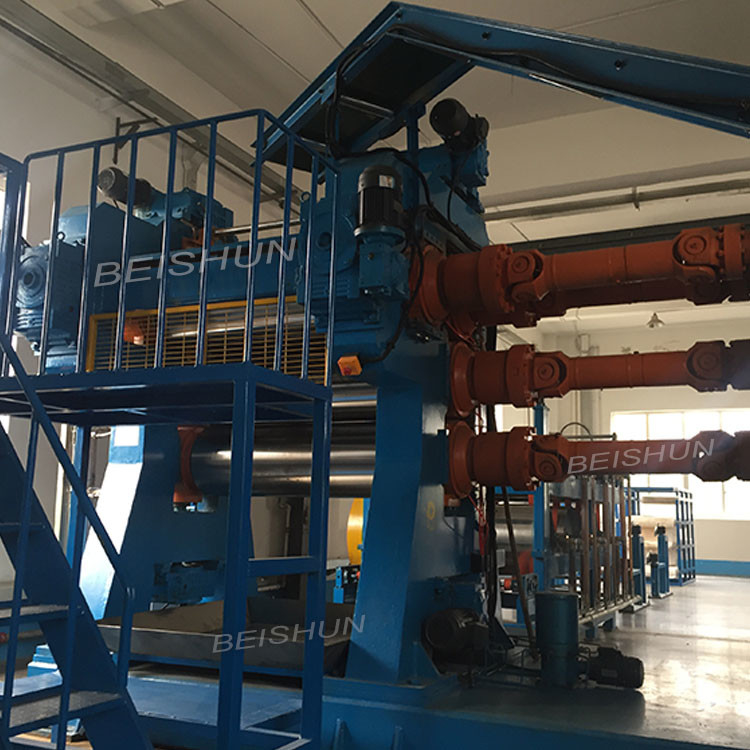

Printing Blanket Coated Laminated Four Roll Rubber Sheet Calender For Print Industry
Application
Rubber calender machine can be divided into paste calender, friction calender, pressure type rolling machine, laminating calender and other. Rubber calender machine is used for rubber sheet outputting, cord(including cotton or synthetic fiber,steel wire),canvas and fabric fractioning, cord single or double-coating with one time connectively as sheet with plastics and composite of rubber or plastics.
Machine specification of Rubber Calender Machine
| Model | XY-4Г630 | XY-4Г1120 | XY-4Г1400 | XY -4Г1500 | XY-4Г1730 | XY-4Г2130 | XY-4Г2430 | |
| Roller Diameter | mm | 230 | 360 | 400 | 450 | 610 | 710 | 810 |
| Working Length | mm | 630 | 1120 | 1400 | 1500 | 1730 | 2130 | 2430 |
| Friction Ratio | 1:1:1:1 | 0.73:1:1:0.73 | 1:1.383:1.383:1 | 1:1.5:1.5:1 |
1:1.4:1.4:1 1:1.4:1.4:1.4 |
1:1.48:1.48:1 1:1.48:1.48:1 |
1:1.5:1.5:1 | |
| Middle Roller Linear Speed | r/min | 2.1-21 | 2-20.1 | 3-26.3 | 2.5-25 | 8-50 | 8-50 | 2-20 |
| Nip Adjustment Range | mm | 0-10 | 0-10 | 0-10 | 0-6 | 20 | 0-20 | 0.5-25 |
| Min. Thickness of Products | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | ±0.1 |
| Product Width | mm | 100-500 | 500-920 | 1200 | 1250 | 1500 | 1900 | 2150 |
| Motor Power | KW | 15 | 55 | 75 | 110 | 160 | 185 | 280 |
| Weight | t | 2.6 | 11 | 22 | 26 | 52 | 67 | 94 |
Machine Introduction:
This two roller calender mainly consist of machine base, machine frame, rollers, roller bearings assembly, roller adjusting device, transmission device, cooling device, safety brake device, motor and speed reducer device, electrical control system etc.
1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.
2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.
4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.
6. Stand Frame & Apron: Heavy Duty Steel Casting.
7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.
8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.
9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
Machine Features:
1. Durable machine body with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration & humanization design.
8. High automation.
9. High efficiency and superior mixing performance.
10. Low power consumption & labor saving.
11. Low noise & long service life.
Our Service:
1. Our engineer team can design customized machines for you and send the drawings for confirm.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box.
3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.
|
|
