| Brand Name: | Beishun |
| Model Number: | XY-2I-1500 |
| MOQ: | 1set |
| Price: | USD 5000-500000 Set |
| Payment Terms: | TT，L/C |

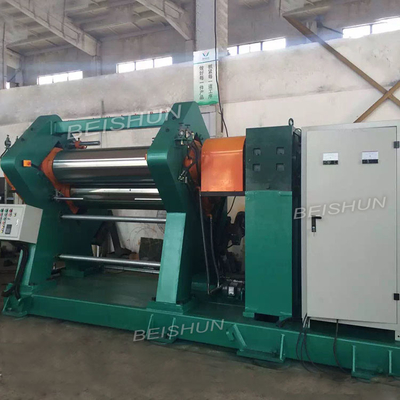

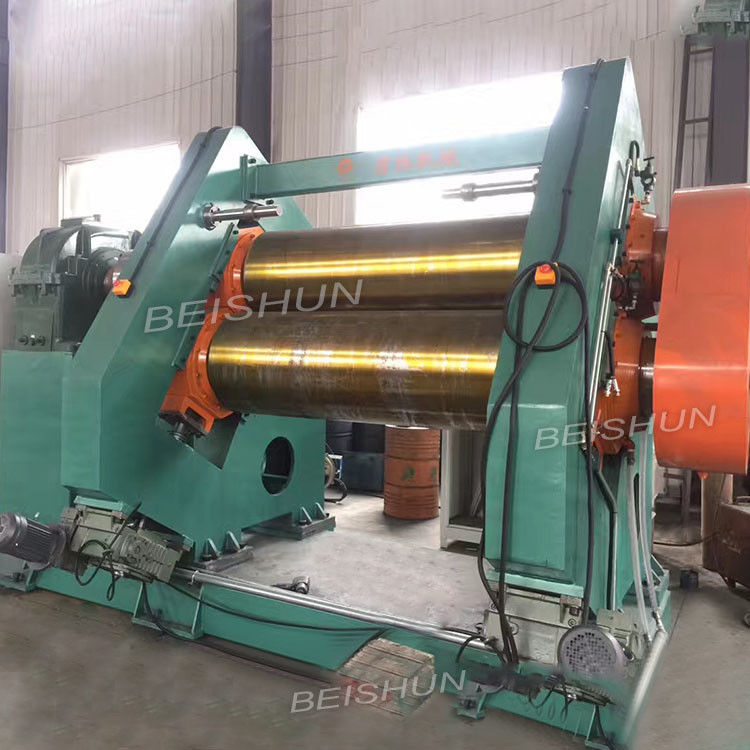

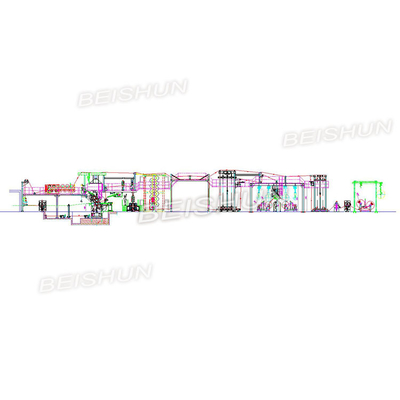

XY rubber calender machine vertical calendering mill with 2 3 4 roll 4-roller
Application
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.
Rubber calender machine can be divided into paste calender, friction calender, pressure type rolling machine, laminating calender and other.
Roller arrangement : I type, T type, L type and S type
The rubber calender is designed with different auxiliary devices to accomodate various processes such as rubberizing and fricitoning.
Machine specification of Rubber Calender Machine
| Model | XY-2I-320 | XY-2I-630 | XY-2I-900 | XY-2I-1500 | XY-2I-1830 | XY-2I-1730 |
| Roller Diameter (mm) | 160 | 230 | 360 | 450 | 550 | 610 |
| Roller Working Length (mm) | 320 | 630 | 900 | 1500 | 1830 | 1730 |
| Friction Ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1.08 | 1:1 |
| Roller Linear Speed | 7.79 | 14.8 | 3-20.2 | 2.5-24.8 | 2-18.7 | 4-36 |
| Nip Adjustment Range (mm) | 0-4.5 | 0-5.5 | 0-10 | 0-10 | 0-12 | 0-15 |
| Min. Thickness of Product (mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Products Width(mm) | 250 | 580 | 920 | 1250 | 1600 | 1500 |
| Main Motor Power (kW) | 5.5 | 15 | 37 | 45 | 75 | 90 |
Features
1. The rubber calender is driven by DC motor with a wide range of speed adjustment, which allows a wide rang of speed adjustment. Working linear speeds can be steplessly changed within the fixed range. The rolls are equipped with bearings lubrication failure alarm device, as well as nip display and speed display.
2. The rubber calender is made of chilled castiron alloys,whose work surface has high hardness,so it is wear-resistant and durable.
3. The rolls are made of chilled Alloy Cast Iron LTH-H. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.
Hardness: 68-72HSD
Chilling Layer: 10-25mm
4. Host Bearing:
Our rubber calendering machine uses equipped with Swedish SKF bearings to guarantee calendering accuracy.
5. Nip Adjustment Device
Nip Adjustment using Upper Roller, Down Roller. It can adjust at both ends at the same time and can adjust separately.
6. Transmission Type:
It is using motor drive speed reducer, through stick pin couplings, friction ratio drive the roller rotation.
7. Speed Reducer:
Type: One Motor input, and one shaft output.
Gear: Hard-tooth type, airlight immersing oil speed reducer. Noise ≤78dB, Safety Factor: SA≥2 times｡
8. Main Motor:
The main motor using frequency motor and through variable-frequence governor adjust the motor rotate speed.
9. Lubrication System:
Bearing Lubrication: These systems has one set of oil tank, it including flow adjustable oil temperature gauge, condenser, filter etc. and flow control, and lower the lubrication oil temperature and guarantee the cleanness of the lubrication oil.
With lubricating oil pipes.
10. Delivery time.
Delivery time depends on the order's quantity, and we guarantee that we will ship the delivery asap upon the receipt of the 30% T/T deposit.
11. Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
|
|
