| Brand Name: | Beishun |
| Model Number: | XLB-750X750X2/200T |
| MOQ: | 1set |
| Price: | USD 5000-100000 Set |
| Payment Terms: | TT，L/C |

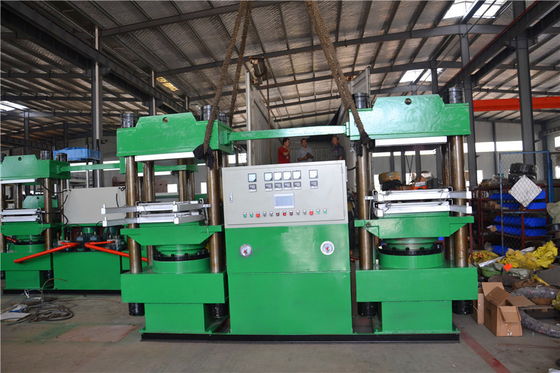

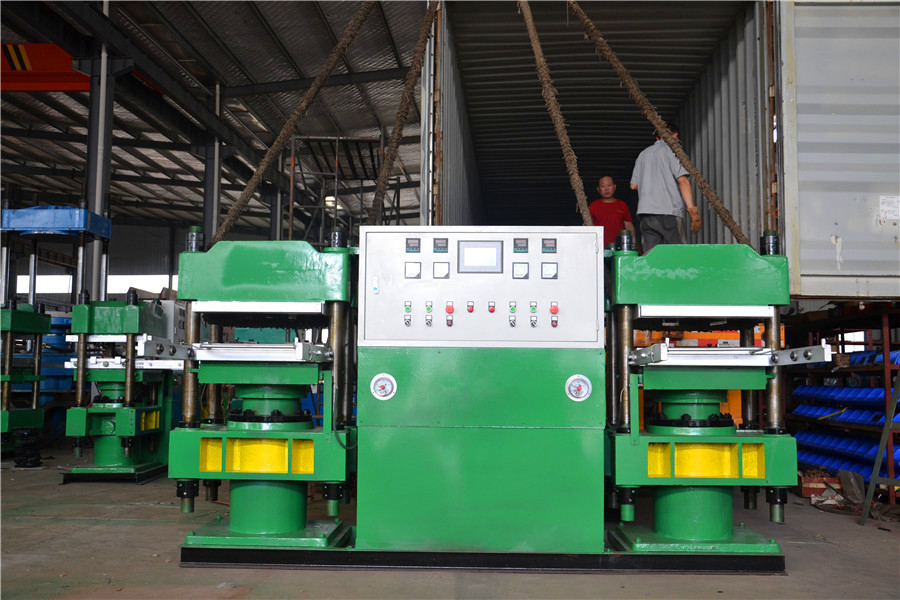

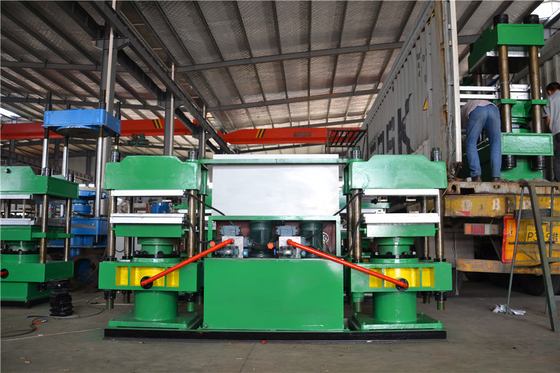

Column Type Hydraulic Vulcanizing Press For Making Rubber Products
Applications
We provide a wide range of rubber vulcanizing hot press, ranging from 15 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning. The Rubber Plate Vulcanizing Press for rubber is the main molding equipments for various of rubber molding products and non-molding products, The Rubber Plate Vulcanizing Press is also suitable for molding to thermosetting plastic, bubble, resins, Bakelite, sheet metal, building materials and other molding products, with simple structure, high pressure, wide applicability, and high efficiency. It is also named Rubber mat vulcanizing press, rubber molding machine, rubber vulcanizing machine, rubber vulcanizer, rubber vulcanizing press, rubber moding press, hydraulic press, hot press, etc.
Features of Automatic PLC Rubber Vulcanizing Press Machine, Hydraulic Vulcanizer Press Machine, floor Mat/rings gasket Moulding Curing Press
1.This rubber vulcanizing press machine with PLC control, high production efficiency.
2. The presses heating method with steam heating or electrical heating we can as our clients required to design.
3. Press with automatic warning device, high safety and convenient.
4. The rubber machines used for rubber vulcanization are known as rubber vulcanizing machines.
5. This rubber vulcanizing press machine strengthens raw rubber by chemically treating it and make rubber harder and stronger.
Machine specification of Rubber Vulcanizing Press Machine
|
Model
|
Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Diameter (L x W x H) (mm) |
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
Flow of machine motions:
Initial state →Put the material into the mould, reposit the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→Vulcanization start →Vulcanization finish→Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→Take out the product
|
