| Brand Name: | Beishun |
| Model Number: | X(S)N-110 |
| MOQ: | 1set |
| Price: | USD 5000-90000 Set |
| Payment Terms: | TT，L/C |

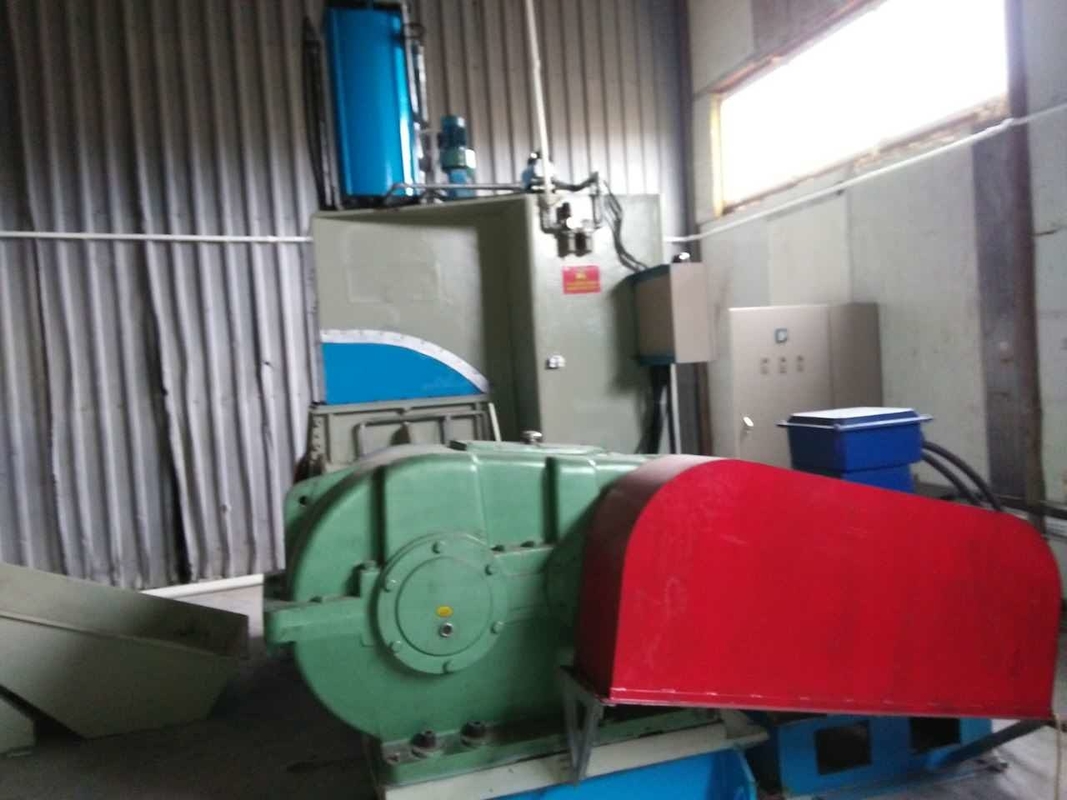

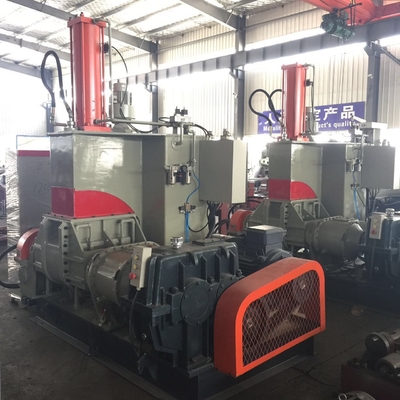

PLC Control 110 Litre Rubber Dispersion Kneader Mixer Machine
Applications
Rubber Dispersion Kneader machine ensures homogeneous compound dispersion, easy colour change cleaning, and simple operation, and represents techno-economic achievement. This Rubber Dispersion Kneader may be used to combine a wide range of materials, from low viscosity adhesives to high viscosity rubber. This Rubber Dispersion Kneader machine is widely used in rubber and related products industry, such as tire plant, cable plant, adhesive tape & hose factory, rubber shoes factory, sealed fittings factory, rubber and plastic products factory, also applies to blend in paints, dyes, ceramics, medicine, tapes, movie film line etc.. The complete Rubber Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.
Machine specification of Rubber Dispersion Kneader Machine
| Model | X(S)N-35x 30 | X(S)N-55x 30 | X(S)N-75 x30 | X(S)N-110 x30 | X(S)M-150 x30 | |
| Total Volume of Mixing Chamber | L | 75 | 125 | 180 | 250 | 325 |
| Working Volume of Mixing Chamber |
L
|
35 | 55 | 75 | 110 | 150 |
| Driving Motor Power | KW | 55 | 75 | 110 | 185 | 220 |
| Tilting Motor Power | KW | 1.1 | 1.1 | 2.2 | 4 | 5.5 |
| Tilting Angle | 140 | 140 | 140 | 140 | 140 | |
| Rotating Speed of (Front /Rear) Rotor | r/min | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air | MPa | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Consumption of Compressed Air |
m3/min
|
≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 |
| Pressure of Cooling Water | MPa | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Pressure of Heating Steam | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Overall Dimension | Mm | 3800x2100x3000 | 4400x2200x3100 | 4500x2500x3200 | 4800x3000x3700 | 5000x3300x3900 |
| Weight | Kg | 6500 | 7800 | 10500 | 14500 | 19500 |
Mixing Chamber:
Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling and tilt for easy discharge and cleaning.
Mixing Rotors:
Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.
Pressure Lid:
Jacketed for effective heating/cooling, steel fabricated, hard faced at mix contact area. (Pneumatic and hydraulic variants available.)
Dust Seal:
Designed specifically to maintain the environment clean, and easily changed.
Temperature Indication Control:
Temp. Indicators with Thermoprobes giving the exact mix tempretuare. Automatic Tempretuare control device with forced water pump & contact thermometer can be provide as an optional feature
|
