| Brand Name: | Beishun |
| Model Number: | X(S)N-110 |
| MOQ: | 1set |
| Price: | USD 10000-90000 Set |
| Payment Terms: | TT，L/C |

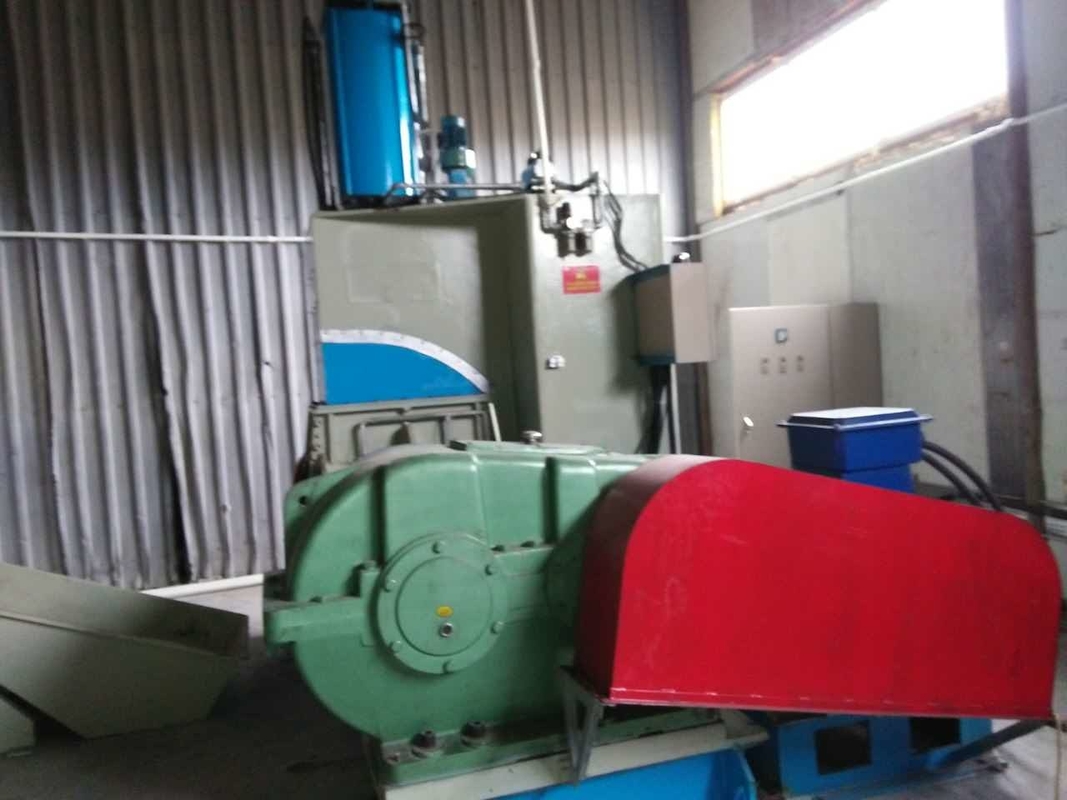

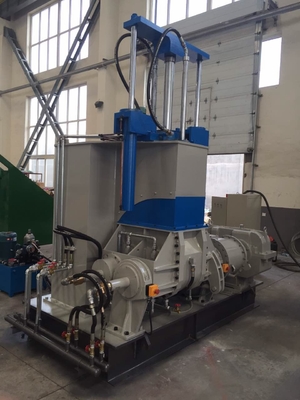

PLC control X(S)N-110 Rubber Dispersion Kneader Machine
| Model | X(S)N-35x 30 | X(S)N-55x 30 | X(S)N-75 x30 | X(S)N-110 x30 | X(S)M-150 x30 | |
| Total Volume of Mixing Chamber | L | 75 | 125 | 180 | 250 | 325 |
| Working Volume of Mixing Chamber |
L
|
35 | 55 | 75 | 110 | 150 |
| Driving Motor Power | KW | 55 | 75 | 110 | 185 | 220 |
| Tilting Motor Power | KW | 1.1 | 1.1 | 2.2 | 4 | 5.5 |
| Tilting Angle | 140 | 140 | 140 | 140 | 140 | |
| Rotating Speed of (Front /Rear) Rotor | r/min | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air | MPa | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Consumption of Compressed Air |
m3/min
|
≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 |
| Pressure of Cooling Water | MPa | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Pressure of Heating Steam | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Overall Dimension | Mm | 3800x2100x3000 | 4400x2200x3100 | 4500x2500x3200 | 4800x3000x3700 | 5000x3300x3900 |
| Weight | Kg | 6500 | 7800 | 10500 | 14500 | 19500 |
Main Features
1. Pneumatic control system is controlled by PLC instruction . A bi-directional air cylinder make the ram up or down , in case thatoverload occurs in the mixing chamber ,the top ram can be raised automatically or manually if necessary , so as to protect motor from overload
2.Tilting mechanism consists of brake motor , cycloidal gear reducer , TP type worm and worm gear etc . It is able to actuate the mixing chamber to tilte by 140 around the front rotor
3.rotor shaft wing body top and wing corner are welded up with wear resistant alloy . rotor shaft surface ,the mixing chamber inner wall , upper ram surface and other surface connected with stock are hardened or polished and plated with hard chrome , or welded up wear resistant alloy welding , so they are wear resistant and corrosion resistant
4.rotor shaft is of integral structure rotor wing body welded on bored shaft , so it improves the strength and stiffness of the rotor . rotor inner wing vody cavity can be put through the cooling water or heating steam
5..mixing chamber is jacket type hollow structure . upper ram is hollow to increase cooling or heating area and the temperature control effect
6.main driving system consists of main motor ,reducer ,connecting gearbox odd-speed and face to face rotation of rotors is achived
|
