| Brand Name: | Beishun |
| Model Number: | XPG-900 |
| MOQ: | 1set |
| Price: | 20000-85000 |
| Payment Terms: | TT，L/C |

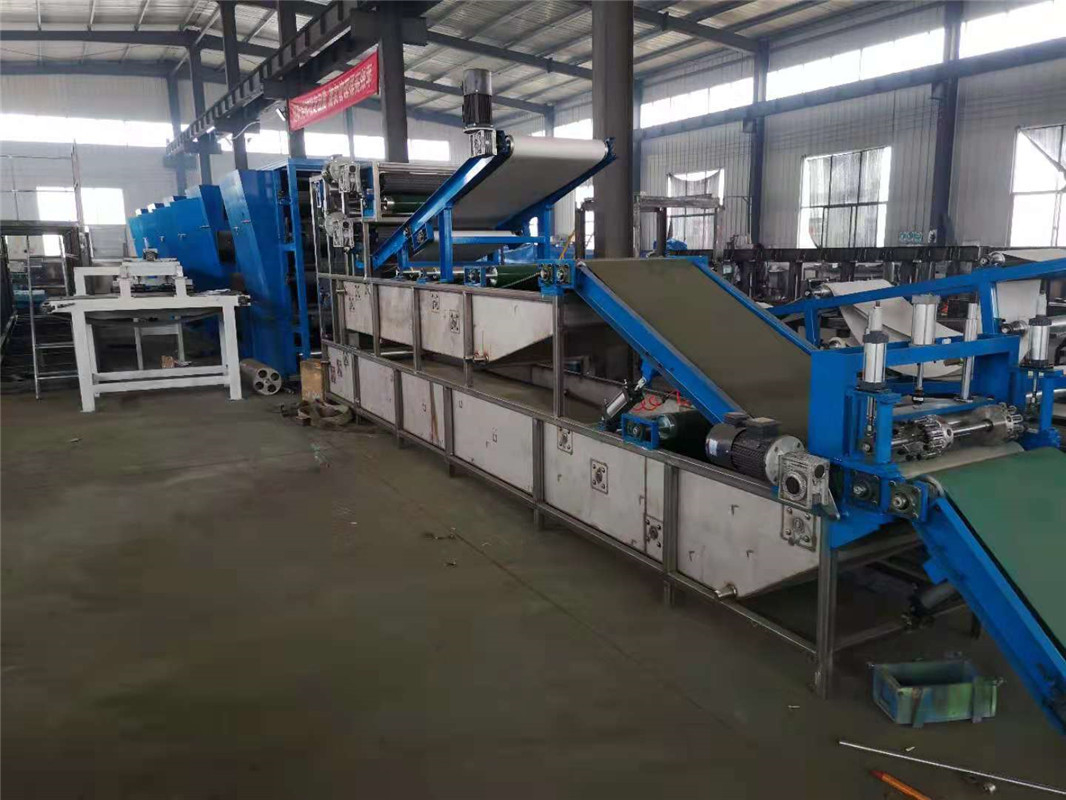

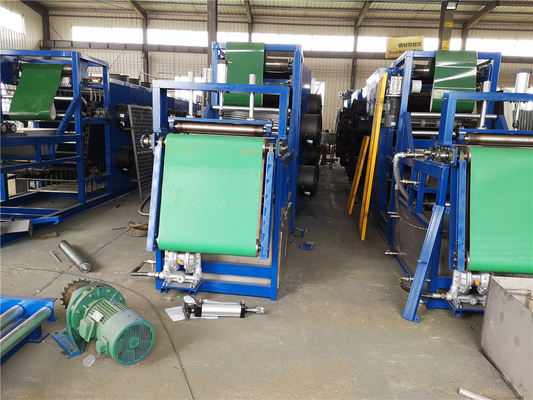

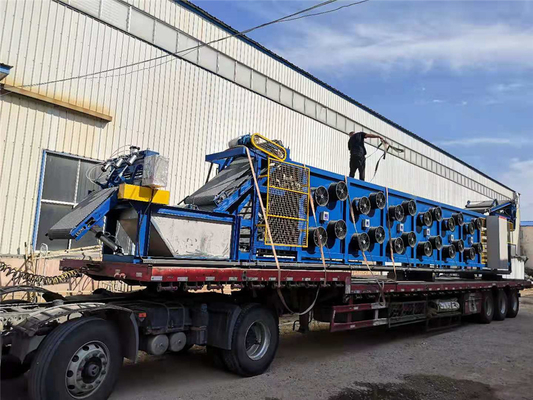

Rubber Strip/Sheet Batch Off Cooling Machine For 24" Rubber Mixing Mill Machine
Application:
Batch Off Rubber Cooling Machine is used for cooling rubber compound sheet from rubber mixing mill machine, it is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder. It is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking.
Machine specification of Rubber Compound Batch Off Cooling Machine
| Model | XPG-600 | XPG-600 | XPG-800 | XPG-900 |
| Type of Construction | Floor or Mesh-belt or Overhead Type | |||
| Max. Rubber Sheet Width(mm) | 600 | 600 | 800 | 900 |
| Rubber Thickness (mm) | 4-10 | 2-12 | 4-10 | 6-12 |
| Temperature of Cooling Rubber Sheet Higher Than Room (℃) | 10 | 10 | 15 | 5 |
| Friction Ratio (m/min) | 3-24 | 3-24 | 3-35 | 4-40 |
| Cooling Fans Number(set) | Customer Request | |||
1. Take in device:
Used to take pressure in film, according to cylinder controlled by fluctuation, operation convenience. Taking in speed can be controlled by manual, it can be ascension. Take device adopts conveyor, the transmission system adopts frequency governor to control.
2. Soak device:
Equipped with triplet, manual rotary valve and pressure cylinder, adjust pressed roll according to cylinder control through the manual rotary valve, in order to Make discontinuous film compressed together and the film continuous a slice.
3. Leaching plasma device:
Function: Take over the film conveying equipment undertakes immersing, and carry on isolation agent. Equipped with cooling water pipe, through the cooling water source, continuous cooling liquid isolation, in order to control the temperature.
4. Take up device:
This device through the conveyor belt with isolation liquid film will be conveyed to the air cooling section gripping.

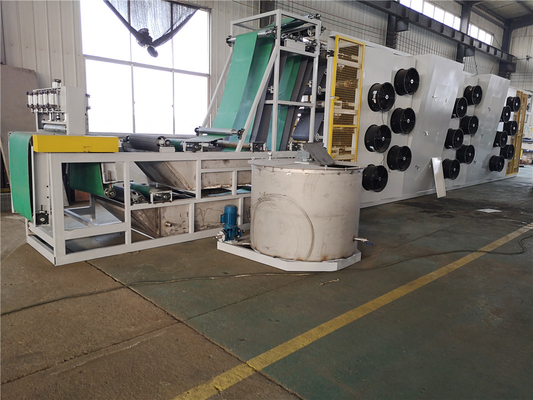

5. Wind cooling device:
Constitute: It is made of frame, cooling fans, hook rail and hang lever conveyor. Cooling fan selection adopts 20 axial fan, satisfy the requirements of film cooling; Hang lever are installed on the taper pin, film in hang lever.
6. Conveying laminated device:
Will the film into laminated measures, continuous fold in film seat.
7. Electrical control system:
(1) All the wires controlled by PLC, it easy for operation, reliable quality.
(2) The speed of production line can be through the inverter adjustment, make the film cooling line speed and host match.
(3) Fan control by the group control each motor are over-current protection circuit breaker, when a fault fan produced when the output signal of the fan, fault in all units and stop hair drier, just deal with a fault can be fan.
|
