| Brand Name: | Beishun |
| Model Number: | XPG-800 |
| MOQ: | 1set |
| Price: | 21000-80000 |
| Payment Terms: | TT，L/C |
Floor Standing Hanging Rod Type Rubber Compound Film Batch Off Cooling Machine
Application:
Floor Standing Hanging Rod Type Rubber Compound Film Batch Off Cooling Machine is used for cooling rubber compound sheet from rubber mixing mill machine, it is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder. It is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking.
Machine specification of Rubber Compound Batch Off Cooling Machine
| Model | XPG-600 | XPG-600 | XPG-800 | XPG-900 |
| Type of Construction | Floor or Mesh-belt or Overhead Type | |||
| Max. Rubber Sheet Width(mm) | 600 | 600 | 800 | 900 |
| Rubber Thickness (mm) | 4-10 | 2-12 | 4-10 | 6-12 |
| Temperature of Cooling Rubber Sheet Higher Than Room (℃) | 10 | 10 | 15 | 5 |
| Friction Ratio (m/min) | 3-24 | 3-24 | 3-35 | 4-40 |
| Cooling Fans Number(set) | Customer Request | |||
The Rubber Compound Film Air Cooling Batch Off Machine is a commonly used cooling device in the production of rubber products. The production of tires, cables, rubber hoses and other rubber products is made much easier when the rubber sheets are cooled using this equipment. It cools and dries the rubber sheet produced in rubber mixing mills or rubber sheet presses so that they can be properly stored.
After kneading, mixing, the rubber material has been pressed to be hot rubber strip/sheet.
This Rubber Batch Off Cooling Machine unit can make the hot rubber strip/sheet cooling and dip release agent.
Rubber batch off cooler machine unit work procedure is:
1. Take the hot rubber strip/sheet in, coat it with release agent.

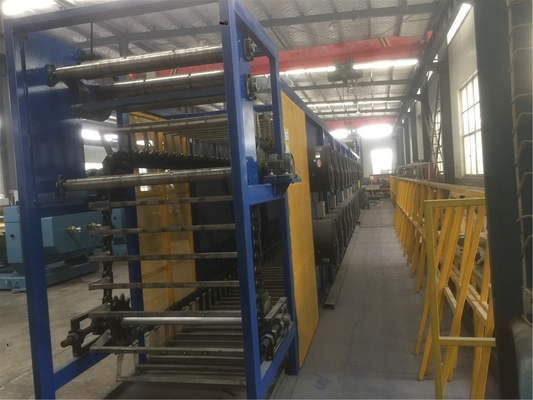

2. Hang the rubber strip/sheet on festoons, cool and dry it by fans.
3. Stack rubber strip/sheet on pallet.

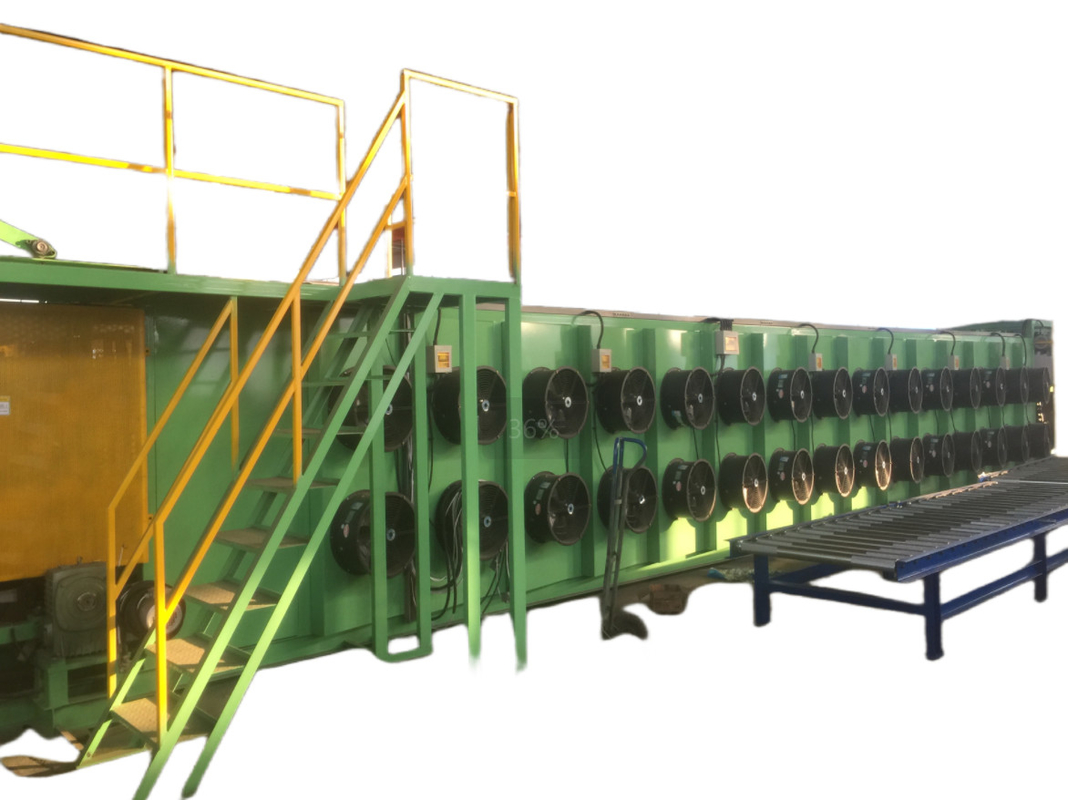

The Rubber Batch Off Cooling Machine body consists of inlet module, cooling device, lifting device, festoon module, down swing device, operating platform, and ladder etc. The electrical control system is in a control box, and set emergency control device on the machine.
Features of Floor Standing Hanging Rod Type Rubber Compound Film Batch Off Cooling Machine
1. There are two structures types: Mesh-belt or overhead or floor-standing types.
2. The clients can choose high or low disposition according to the practical requirements.
3. The high disposition batch-off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio (< =100mm);
4. There are three or five working positions for auto entering and outputting of material tray.
5. Auto rubber collecting device; Auto cutter device; It has high automation and can realize unattended operation.
|
