| Brand Name: | Beishun |
| Model Number: | NJY-450 |
| MOQ: | 1set |
| Price: | USD15880 |
| Packaging Details: | wooden box |
| Payment Terms: | TT，L/C |
Hydraulic Light Truck Tyre Tube Splicing Machine/Light Truck Tyre Tube Splicing Machine/Tire Tube Jointing Machine
Applicant
1. The machine is mainly used to splice the inner tube of automobile, motorcycle bicycle, It features high efficiency and lower labor.
2. It is equipped with advanced hydraulic control system and PLC controller, the transmission part is adopted of linear action bearing that ensurance accuracy in movement.
3. The honrizontal cutting method is applied and the heating temperature conrol of the cutter in a wide range.
4. The joint board used rubber surface joint mold and is fit for a wide variety of rubber splicing. The joint features high strength and stable quality.
This machine is used for green butt-jointing the tube splicer into a circle for curing.
It's hydraulic type with high pressure to make sure the joint is perfect.
Blow is some parameters of hydraulic type splicer.
| model | LYD-360 | LYD-450 | LYD-630 | LYD-800 |
| splicing width(mm) | 60-360 | 90-450 | 340-630 | 500-800 |
| max splicing thickness(mm) | 10 | 12 | 20 | 22 |
| min splicing length(mm) | 700 | 1000 | 1100 | 1200 |
| max splicing pressure(Mpa) | 5 | 3.7 | 4.2 | 9 |
| max clamping pressure(Mpa) | 2.5 | 3.9 | 3.9 | 5.3 |
| max splicing force(kn) | 46 | 64 | 73 | 150 |
| max clamping force(kn) | 7 | 11 | 11 | 15 |

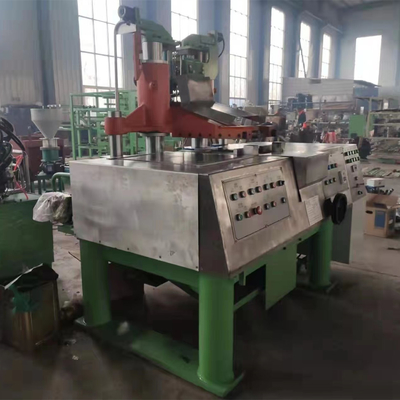

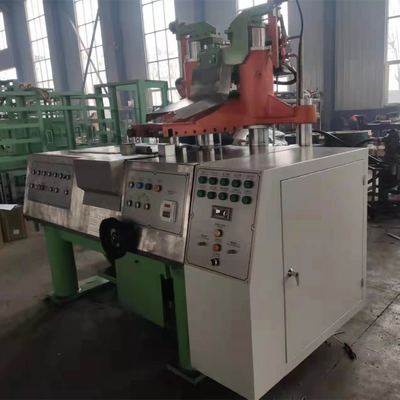

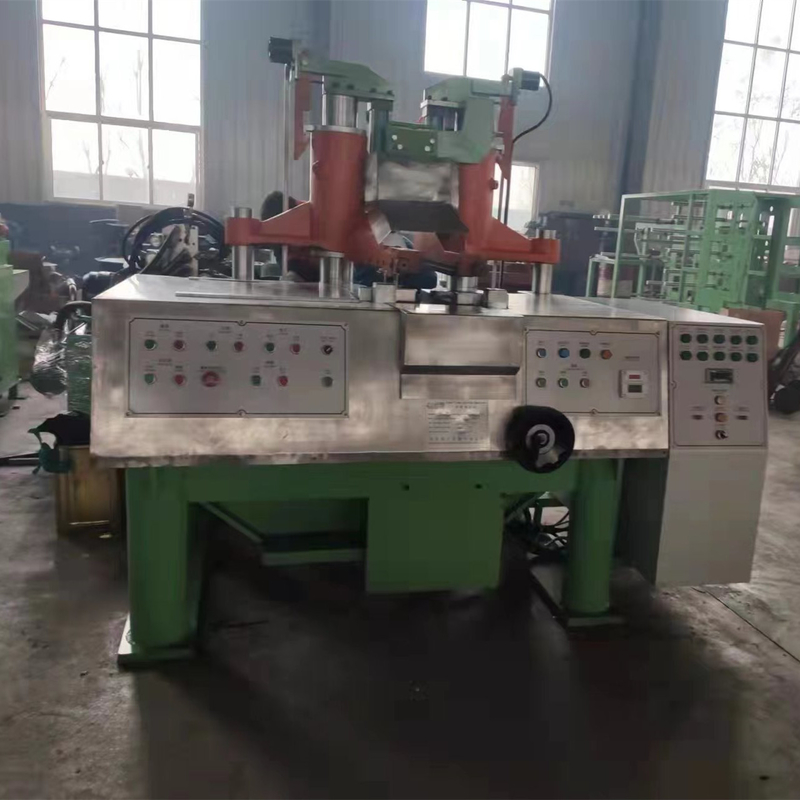

The machine details
About my company
Qingdao Beishun Environmental Protection Technology Co., Ltd. is engaged in Environmental protection machinery, rubber machinery R & D and manufacturing enterprises, located in the west coast of Qingdao ---- Jiaonan city, Qingdao Economic and Technological Development Zone, adjacent to the former Bay near Qingdao Port and International Airport Liuting airport, excellent geographical location.
The company gathered a large number of the industry's outstanding technical and management personnel, advanced machining, heat treatment equipment and sophisticated detection equipment. With high-quality service, advanced equipment and strong technical force as the basis, through constant innovation and development, Beishun Environmental Protection Technology machinery has many customers at home and abroad to establish a stable business relationship, and gradually establish a brand in the same enterprise.
Companies adhere to the "first-class quality to gain market confidence, quality service to win customer satisfaction, continuous improvement of enterprise development seek to establish a corporate brand management excellence" business philosophy, in terms of quality, brand and work hard to achieve the strategic goals of common development.
Qingdao Beishun Environmental Protection Technology Co., Ltd. will carry forward the "realistic, innovative, rigorous and efficient" business style, good governance, integrity first, with a high sense of responsibility "in customer service, service to the community", with industry colleagues mutual benefit, for a better tomorrow.
Our packing and loading
|
