| Brand Name: | Beishun |
| Model Number: | TNSX-ML |
| MOQ: | 1set |
| Price: | USD15880 |
| Packaging Details: | wooden box |
| Payment Terms: | TT，L/C |
Inner Tube Production Line For motorcycle/bicycle Tube
Inner Tube Production Line/Inner Tube Extrusion Line
Applicant
Mainly used for production of inner tube with rubber base tube valve, also can be used for common valve of bicycle, motorcycle, car, truck inner tube production.
Structure features:
The cooling line is applied for cooling, blowing off, printing, hole punching, valve pitting, soap stoning, length limited cutting after tube being extruded. The operation is fully automatic, with PLC control and adjusting for saving labor, for high efficiency producing and less defective rate. The whole line is a linked driving with inverter control, that the speed can be adjusted freely.
Main parameter
| Type | NSX-ML | NSX-L |
| Specification of tubes | Inner tube of motorcycle/bicycle | Big inner tube |
| Double layer width of tube(mm) | <200 | <420 |
| Line speed(r/min) | 10-40 | 8-305 |
| Diameter of punching hole(mm) | 6-8 | 8-10 |
| Pressure of compressed air(Mpa) | 0.6 | 0.7 |
| Total capacity(kw/h) | 14 | 22 |
| Weight(kg) | 5000 | 7000 |
| Overall size(mm) | 23500x1000x850 | 35000x1300x850 |

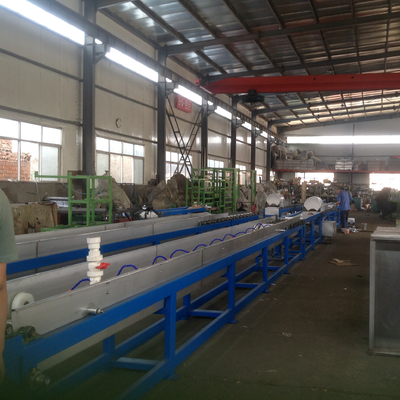

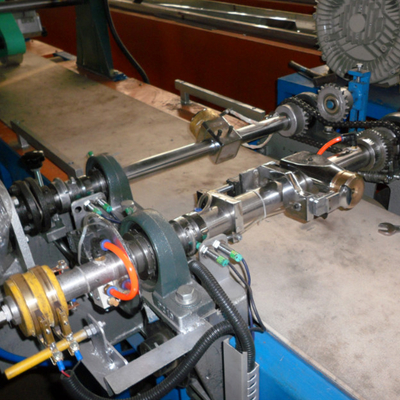

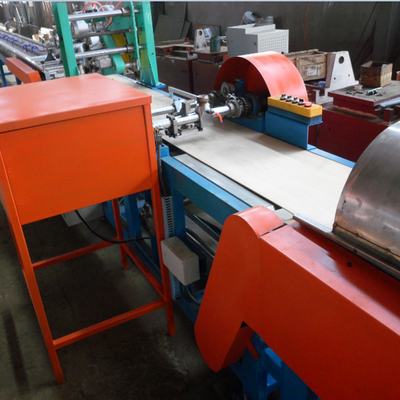

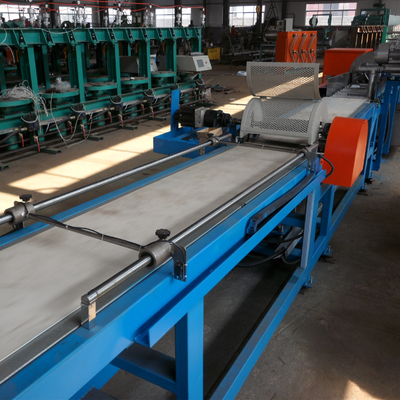

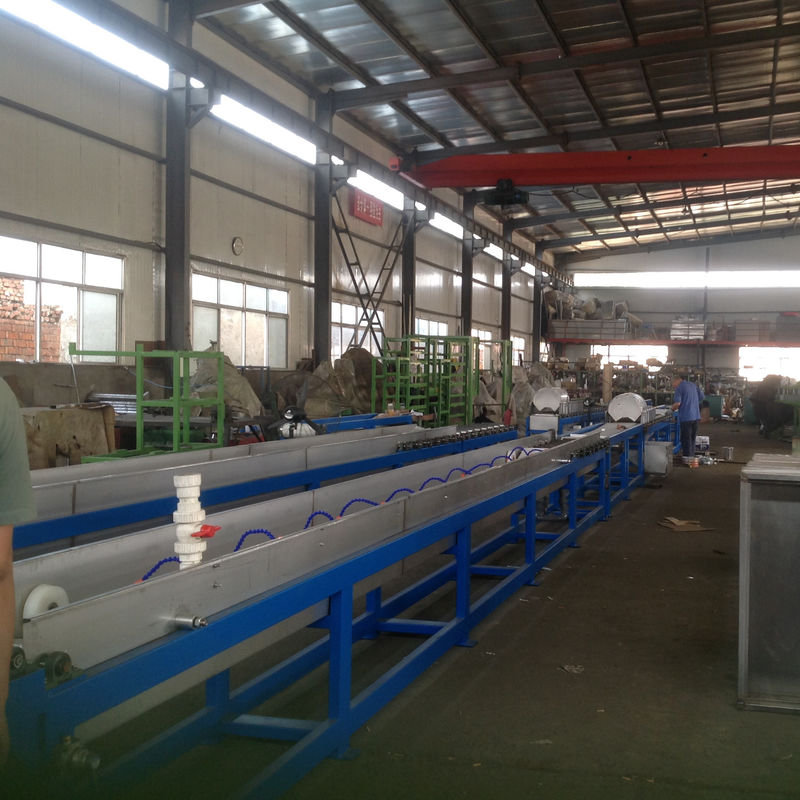

Machine detail
About my factory
Qingdao Beishun Environmental Protection Technology Co., Ltd. is engaged in Environmental protection machinery, rubber machinery R & D and manufacturing enterprises, located in the west coast of Qingdao ---- Jiaonan city, Qingdao Economic and Technological Development Zone, adjacent to the former Bay near Qingdao Port and International Airport Liuting airport, excellent geographical location.
The company gathered a large number of the industry's outstanding technical and management personnel, advanced machining, heat treatment equipment and sophisticated detection equipment. With high-quality service, advanced equipment and strong technical force as the basis, through constant innovation and development, Beishun Environmental Protection Technology machinery has many customers at home and abroad to establish a stable business relationship, and gradually establish a brand in the same enterprise.
Companies adhere to the "first-class quality to gain market confidence, quality service to win customer satisfaction, continuous improvement of enterprise development seek to establish a corporate brand management excellence" business philosophy, in terms of quality, brand and work hard to achieve the strategic goals of common development.
Qingdao Beishun Environmental Protection Technology Co., Ltd. will carry forward the "realistic, innovative, rigorous and efficient" business style, good governance, integrity first, with a high sense of responsibility "in customer service, service to the community", with industry colleagues mutual benefit, for a better tomorrow.
The packing and loading of the machine
|
