| Brand Name: | Beishun |
| Model Number: | LLY-B950x1000 |
| MOQ: | 1set |
| Price: | USD13850-USD30800 |
| Packaging Details: | wooden box |
| Payment Terms: | TT，L/C |
Motorcycle Tire Vulcanizing Machine/Hydraulic Tire Capsule Vulcanizing Press
Rubber Vulcanizing Press machine
Application
Used for automatic shaping and vulcanzation of tires during the production process of bicycle, electric car, motorcycle cover tires, and ATV tires, replacing the wind(water) tire to complete production of tires products in accordance with technological requirements.
This machine used shaping and vulcanizing machine powered by hydraulic pressure, adopting B-type capsule, tow-way thermal curing. Mainly consists of beam, umbrella stand, hot plate, central organization, foundation, frame, electric control system, oil pressure system and other parts. The machine has a simple structure, stable running, high accuracy of upper and lower mold alignment, easy operation, simple maintenance, high production efficiency, low labor strength and other characteristics.
Main parameter
| Type | LLB-650/40 | LLB/M-800/60 | LLB-800/100 |
| Max. Closing mold force(T) | 25-40 | 60 | 80-90 |
| Diameter of heating plate(mm) | 500-650 | 800 | 800-840 |
| Space between plate(mm) | 300-600 | 500-600 | 600-650 |
| Applicable rim diameter(inch) | 4”5”6”8” | 8”-16” | 16”-18” |
| Qty. Of mold(set) | 2 | 2 | 1 |
| Diameter of plunger(mm) | 200 | 200 | 290 |
| Diameter of center pole(mm) | 25-35 | 35-40 | 40 |
| Stroke of center pole(mm) | 200 | 200 | 300 |
| Working air pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Internal air pressure(Mpa) | 1.8 | 1.8 | 1.8 |
| Internal steam pressure(Mpa) | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 |
| Internal pressure of preshaping(Mpa) | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
| Motor power(kw) | 7.5 | 7.5 | 11 |
| Overall diameter of principle machine(mm) | 1200x900x2300 | 2400x900x2910 | 2700x1300x2550 |
| Overall size of pump(mm) | 1000x600x1200 | 1000x600x1200 | 1520x1130x1300 |
| Weight of principle machine(kg) | 2500 | 2800 | 3500 |
Machine detail

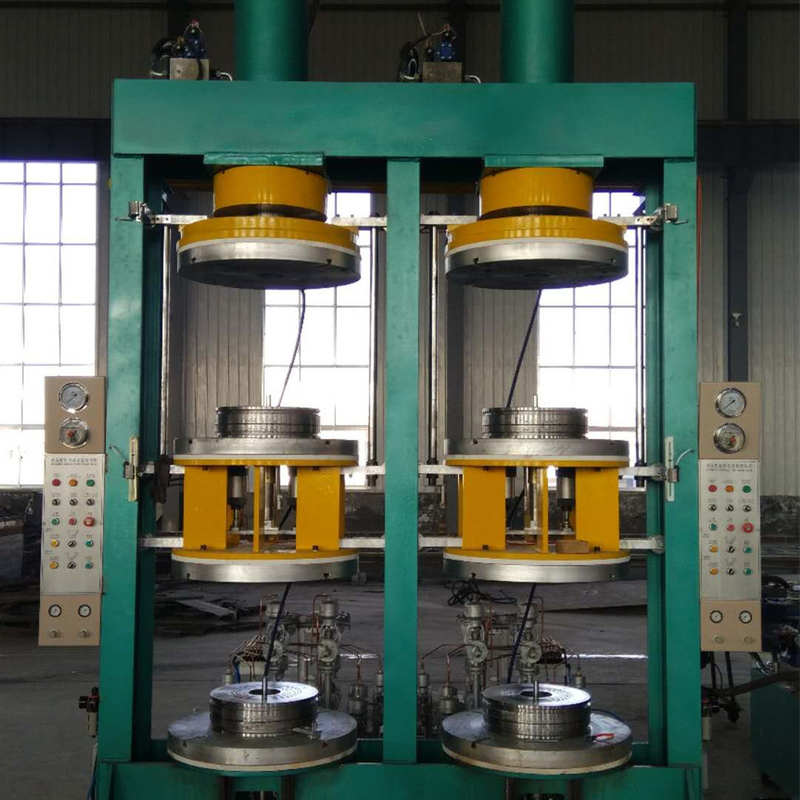

Top oil cylinder, one working layer capsule vuclanizing machine
Machine spare parts
Top oil cylinder
About my company
Qingdao Beishun Environmental Protection Technology Co., Ltd. is engaged in Environmental protection machinery, rubber machinery R & D and manufacturing enterprises, located in the west coast of Qingdao ---- Jiaonan city, Qingdao Economic and Technological Development Zone, adjacent to the former Bay near Qingdao Port and International Airport Liuting airport, excellent geographical location.
The company gathered a large number of the industry's outstanding technical and management personnel, advanced machining, heat treatment equipment and sophisticated detection equipment. With high-quality service, advanced equipment and strong technical force as the basis, through constant innovation and development, Beishun Environmental Protection Technology machinery has many customers at home and abroad to establish a stable business relationship, and gradually establish a brand in the same enterprise.
Companies adhere to the "first-class quality to gain market confidence, quality service to win customer satisfaction, continuous improvement of enterprise development seek to establish a corporate brand management excellence" business philosophy, in terms of quality, brand and work hard to achieve the strategic goals of common development.
Qingdao Beishun Environmental Protection Technology Co., Ltd. will carry forward the "realistic, innovative, rigorous and efficient" business style, good governance, integrity first, with a high sense of responsibility "in customer service, service to the community", with industry colleagues mutual benefit, for a better tomorrow.
|
|
